ASUZAC ACM V-Process: Cast Any Pattern – Creativity Has No Limits
In the world of aluminum casting, few technologies offer the freedom and precision to turn virtually any idea into a physical, high-quality product. At ASUZAC ACM, Japan’s leading aluminum casting manufacturer, the proprietary V-Process Technology does exactly that — it can cast any pattern, no matter how simple, complex, organic, or abstract.
Whether you have a rough sketch, a digital design, or even something as everyday as a crumpled piece of A4 paper, ASUZAC ACM can transform it into a precise, durable cast aluminum pattern with exceptional surface detail and structural integrity.
This article explores the remarkable capabilities of the V-Process, demonstrates how it turns ordinary ideas into extraordinary aluminum castings, and shows why creativity truly has no limits when you partner with ASUZAC ACM.
Table of Contents
What is V-Process Technology?
V-Process Technology is ASUZAC ACM’s signature vacuum-assisted precision casting method, originally developed in Japan in 1972 in collaboration with the Industrial Research Institute of Nagano Prefecture.
Unlike traditional sand casting or die casting, the V-Process uses a vacuum to draw molten aluminum into a mold created from a thin plastic film. This unique process delivers:
- Mirror-smooth surface finishes (Ra < 0.4 μm achievable)
- Zero internal porosity
- Exceptional dimensional accuracy (±0.2 mm tolerance on large parts)
- The ability to reproduce extremely fine and complex patterns in a single monolithic piece
Because the mold is formed by a thin film that conforms perfectly to the pattern, even the most irregular or organic textures can be captured with incredible fidelity.
Real Example: Casting a Crumpled A4 Paper Pattern
One of the most striking demonstrations of the V-Process’s versatility is its ability to cast something as simple and random as a crumpled sheet of A4 paper.

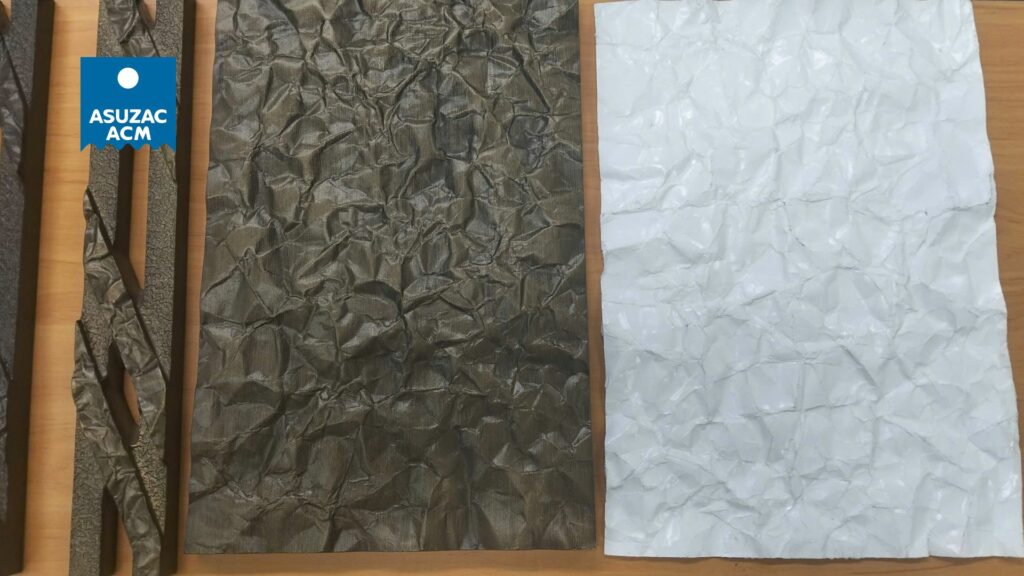

The images show two stages of this process:
- The original white crumpled paper with its irregular folds, creases, and texture.

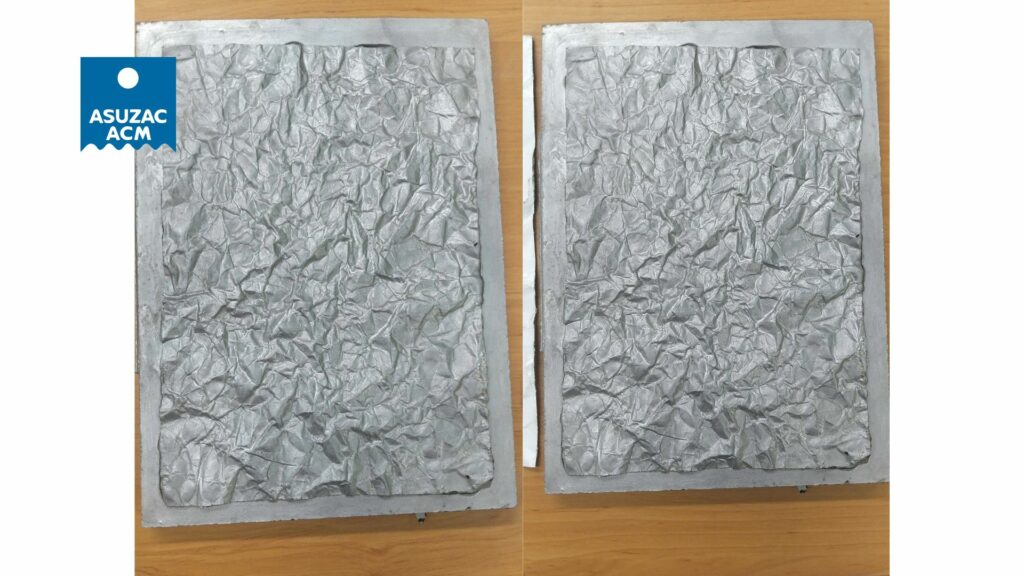

- The resulting cast aluminum panel that faithfully reproduces every wrinkle, fold, and ridge of the paper in metal.
This is not a special effect or digital manipulation — it is a real, physical aluminum casting created using the V-Process. The level of detail captured is extraordinary, turning an everyday object into a sophisticated, high-quality aluminum pattern suitable for architectural, decorative, or industrial applications.
This example proves a powerful point: If ASUZAC ACM can cast a crumpled A4 paper with such precision, imagine what it can do with your creative ideas.
Creativity Has No Limits with ASUZAC ACM
The beauty of the V-Process is that there are virtually no restrictions on the pattern you can create.
You can bring ASUZAC ACM:
- A simple hand-drawn sketch
- A digital 3D model
- A photograph of natural textures (tree bark, stone, waves, leaves)
- An abstract artistic concept
- A branded logo or corporate pattern
- Even a physical object you want replicated in aluminum
ASUZAC ACM’s team of engineers and artisans will work with you from the initial idea through 3D modeling, mold creation, casting, finishing, and final quality inspection. The result is a high-quality aluminum pattern that faithfully realizes your vision with industrial-grade precision and beauty.
This unlimited creativity makes ASUZAC ACM the ideal partner for:
- Architectural facade projects requiring unique textures
- Custom decorative accessories and trims
- Artistic installations and sculptures
- Branded elements for hotels, resorts, and commercial spaces
- Functional components with complex surface requirements
Why ASUZAC ACM Products Excel in Harsh Weather and Architectural Projects
ASUZAC ACM cast aluminum patterns are not only beautiful — they are engineered for real-world performance.
All products are finished with premium AAMA 2605-compliant PPG coatings (DURANAR® liquid 70% PVDF or Coraflon® Platinum FEVE powder). These coatings provide:
- Exceptional resistance to UV radiation, salt spray, pollution, and extreme temperatures
- Long-term color and gloss retention (color change ≤5 ΔE, chalk rating ≤8 after 10 years equivalent exposure)
- Near-zero maintenance requirements
This makes ASUZAC ACM aluminum patterns highly suitable for harsh weather conditions worldwide. For architectural projects, the durability translates into significant cost-efficiency: once the building is constructed, the facade or decorative elements require minimal upkeep, avoiding the high costs and time-consuming maintenance associated with frequent repairs or replacements.
Contact ASUZAC ACM – Turn Your Pattern Idea into Reality
Whether you have a rough concept, a detailed design, or simply an inspiration like a crumpled piece of paper, ASUZAC ACM can cast it for you and make your project come true with high-quality aluminum patterns.
- Phone: +84-937-076-608
- Email: [email protected]
- Website: Contact Us
- Address: No. 1A, Road No. 8, Vietnam – Singapore Industrial Park, Binh Hoa Ward, Ho Chi Minh City
Creativity has no limits with ASUZAC ACM. Just give us your idea — we will cast it into reality.
Final Word – Your Idea, Our Precision
In 2026, the most exciting architectural and decorative projects begin with a simple question: “What if we could cast this pattern in aluminum?”
ASUZAC ACM answers that question every day with the V-Process — turning imagination into high-quality, durable cast aluminum patterns that last for generations.
Your next creative breakthrough starts with one conversation.
Reach out to ASUZAC ACM today.
